Water Tower Ozone Treatment System







Water is often contaminated when stored in the water tank



Common sources of contamination include:

Water tank are not cleaned and inspected regularly.

Water is contaminated with heavy metal and microorganisms through ruptures in the pipes.

Scales and algae build up in the tank.

Water tanks are located in lower place are flooded with contaminated rainwater.





The advantages of water treatment by ozone...

Water from tap water, rain, river, lake, well or groundwater, for domestic or agricultural use could be disinfected by one of the following methods such as filtration, distillation, ultraviolet lamp and boiling. However, those methods have the drawbacks of limited output quantity, and the water can’t be used on line immediately



Ozone is 2,000 times more efficient than chlorine when used as a disinfectant. It can destroy bacteria, fungus, spores and parasites in water, especially the chlorine-resistant microorganisms. Ozone also can oxidize organic contaminates and decompose inorganic contaminates to eliminate the pollutants of water. Besides, ozone can remove unwanted odors and colors, which chlorine is incapable to do. Since ozone decays in 20 minutes naturally, it can be used in high concentration to treat water without residuals.





The comparison table of different water treatments



Filtration

RO

Distillation

UV

Boiling

Ozone

  Disinfection effectiveness

None

Depends

Good

Depends

Good

Good

  Chlorine-eliminating effectiveness

Depends

Fair

Good

Depends

Good

Good

  Decolorization effectiveness

Depends

Good

Good

Depends

Good

Good

  Deodorization effectiveness

Depends

Good

Good

Depends

Bad

Good

  Healthful minerals remaining

Depends

Depends

No

Yes

Yes

Yes

  Processing speed

Fast

Slow

Slow

Mid

Slow

Fast

  Water consuming

No

Yes

No

No

No

No

  Expendable parts and maintenance fee

Yes

Yes

No

Yes

No

No

  Meet drinking water standards

No

Yes

Yes

Depends

Yes

Yes

  Economical feasibility

Yes

No

No

No

No

Yes





The advantage of using AirTree's Water Tower Ozone Treatment System

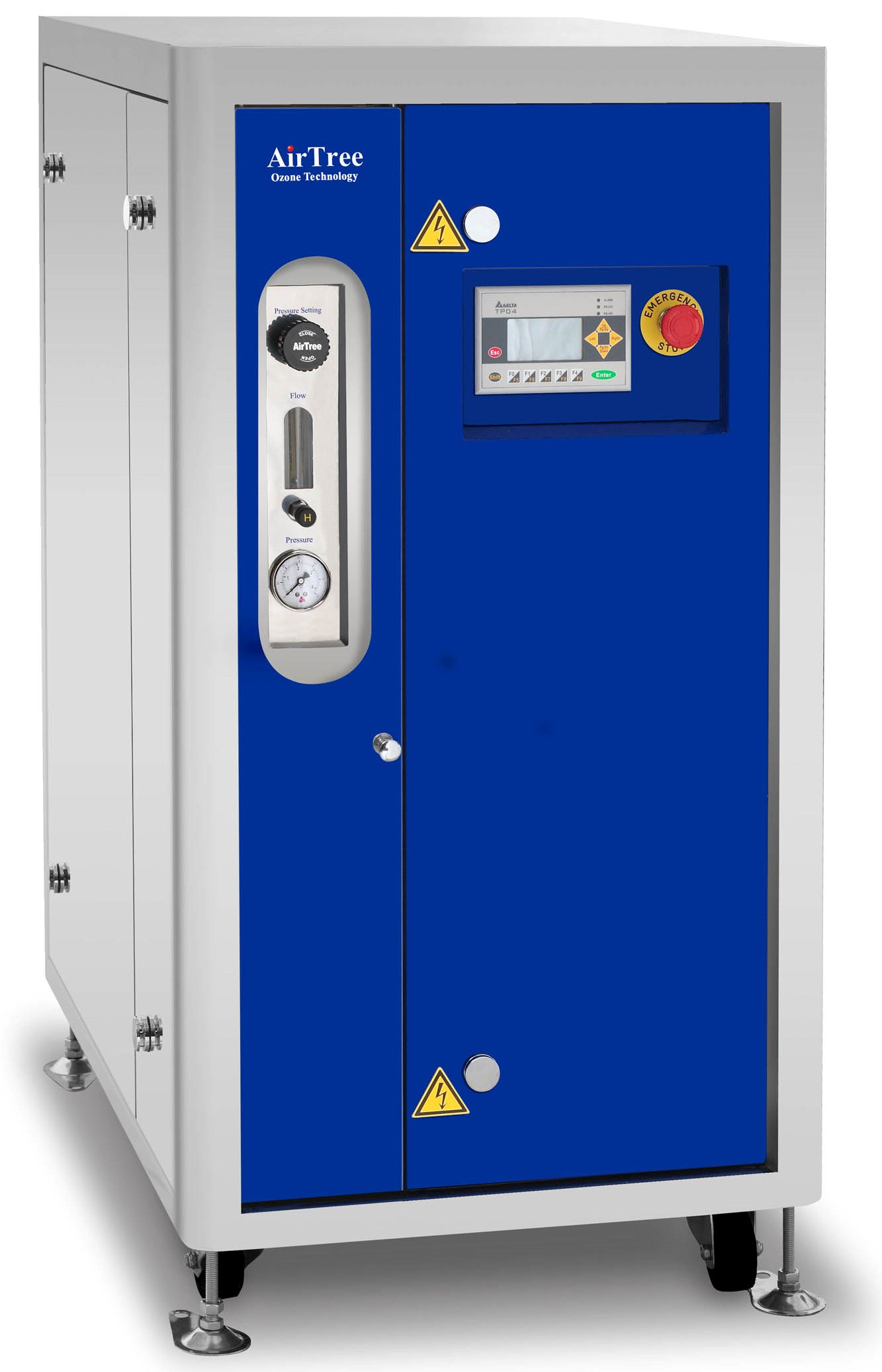

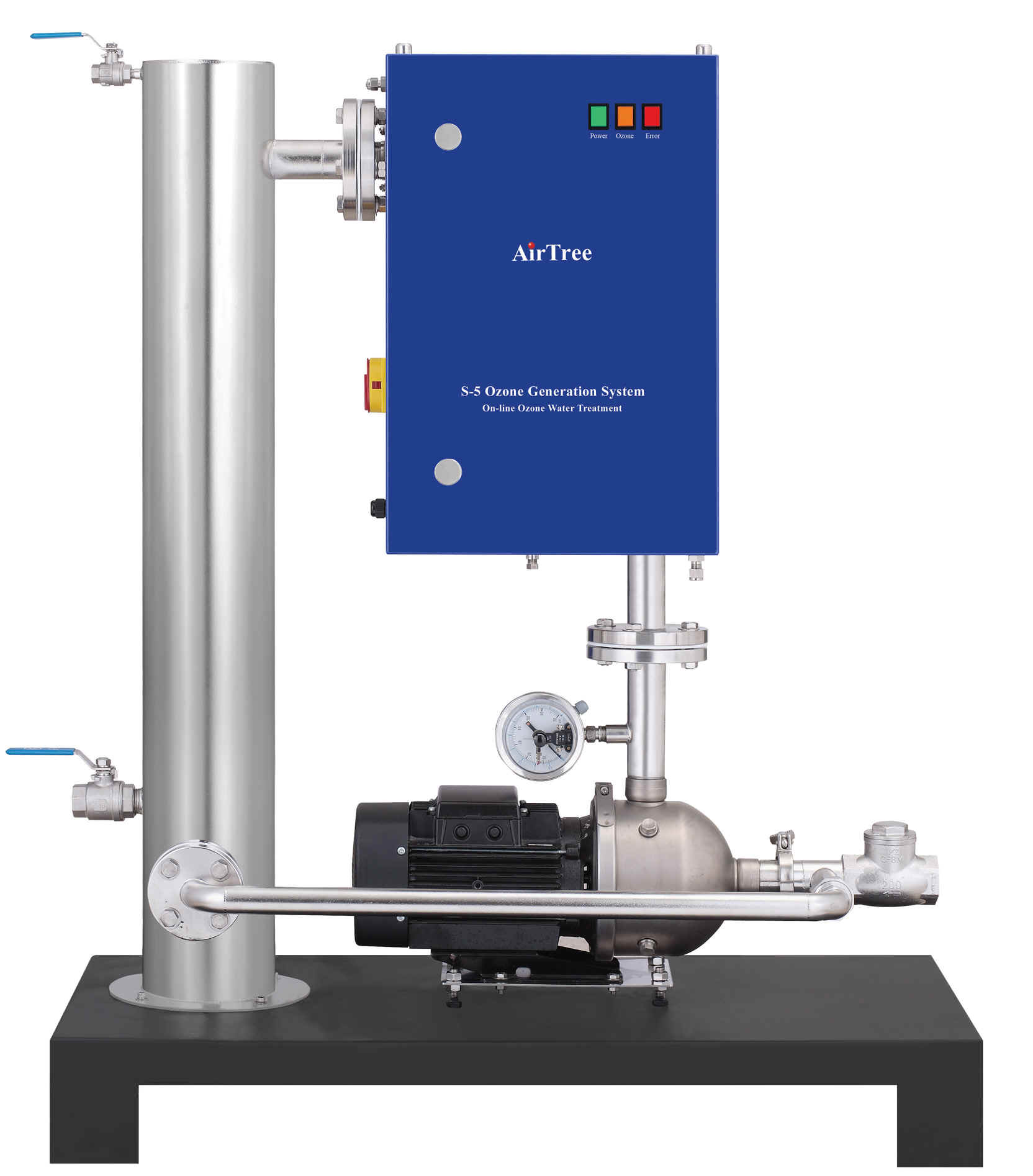

AirTree's water tower ozone treatment system is an integrated ozonator with high efficiency mixing system. It's easy installation and economically provide large quantity of disinfected water

Eliminate bacteria growth

Oxidize organic contaminates

Decolorize and deodorize water

Easy to install

  No expendable parts

Fit well with any existing water supply system

Design by different water quantity, suitable for different building



▲ 2~15 ton tower

▲ > 15 ton tower
