Specification

  Model

C-Lasky

C-L010DT

C-L010DS

C-L010DTI

C-L010DSI

  Dimension (mm)

W300 x L460 x H195

W300 x L460 x H195

W300 x L460 x H195

W300 x L460 x H195

  Weight (kg)

12.4

12.4

12.4

12.4

  Ozone production

10 g/h @ 6 l/min oxygen fed

2 g/h @ 10 l/min air-fed

10 g/h @ 6 l/min oxygen fed

2 g/h @ 10 l/min air-fed

10 g/h @ 6 l/min oxygen fed

10 g/h @ 6 l/min oxygen fed

  Signal interface

Timer controller

On/Off

4-20 mA signal digital

display controller

Timer controller

On/Off

4-20 mA signal digital

display controller

  Structure

Corona discharge between the surfaces of two quartz tubes without the presence of metals

  Feed gas

Oxygen/Air

  Flow rate

2 - 10 l/min

  Cooling method

Air-cooled

  Ozone outlet

6 mm Swagelok

  Consumption

180 W

  Power supply

AC 220-240 V, 50/60 Hz, single phase

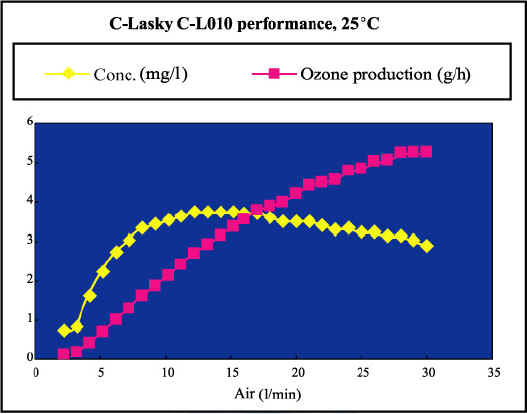

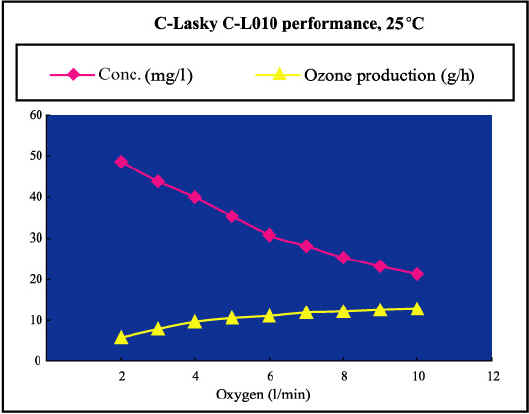

C-Lasky C-L010 Performance Curve
