| System
layout
|
|
|
|
| Specification
|
|
Model |
TOBY |
|
Dimensions (cm) |
39 x 20 x 31 |
|
Ozone production |
0.9 g/h dissolved into water 4.5 g/h using 6 l/min oxygen concentrator (optional) |
|
Feed gas |
Air or external oxygen concentrator (optional) |
|
Indicators |
Power on/off and ozone operation LED indicators |
|
Weight (kg) |
11.5 |
|
Input power |
AC 230 V, 50/60 Hz |
|
Power consumption |
95 W (not including pump) |

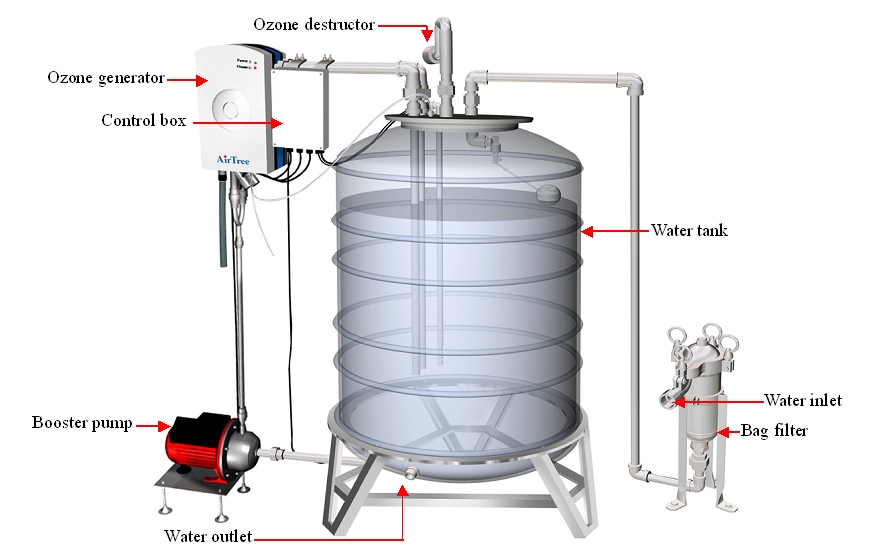

| System
layout
|
|
|
|
|

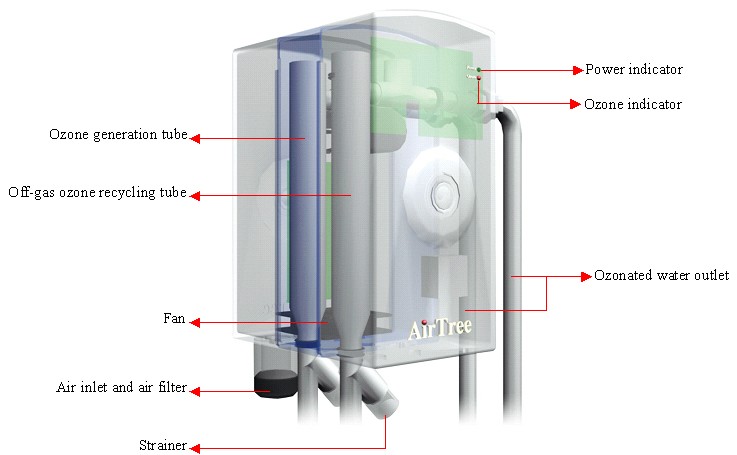

¡@ Description of TOBY
|
||
|
¡½ Switch and indicator: |
||
|
|
A power on/off switch is located at the bottom. A power indicator and an ozone operation indicator are located in the front panel.
|
|
| ¡½ Control method: | ||
|
TOBY is externally activated responding to the trigger from the water level controller when water starting to feed into the tank. TOBY is also internally activated for a period of duty operation on the daily regular basis, which is controlled by the internal microprocessor.
|
||
| ¡½ Ozone recycling: | ||
|
There is a second mixing device in the system to recycle the undissolved ozone so that there is no concern for ozone leakage or escape.
|
||
|
¡@
|
||
|
¡@
|
||
|
¡@ Water treatment applications comparison chart
|
||
|
|
Filtration |
RO |
Distillation |
Ultraviolet |
Boiling |
Ozone |
|
Disinfection effectiveness |
None |
Depends |
Good |
None |
Good |
Good |
|
Chlorine-eliminating effectiveness |
Depends |
Fair |
Good |
Depends |
Good |
Good |
|
Decolorization effectiveness |
Depends |
Good |
Good |
Depends |
Good |
Good |
|
Deodrization effectiveness |
Depends |
Good |
Good |
Depends |
Bad |
Good |
|
Healthful minerals remaining |
Depends |
Depends |
No |
Yes |
Yes |
Yes |
|
Processing speed |
Fast |
Slow |
Slow |
Mid |
Slow |
Fast |
|
Water consuming |
No |
Yes |
No |
No |
No |
No |
|
Expendable parts and maintenance fee |
Yes |
Yes |
No |
Yes |
No |
No |
|
Meet drinking water standard |
No |
Yes |
Yes |
Depends |
Yes |
Yes |
|
Economical feasible |
Yes |
No |
No |
No |
No |
Yes |
¡@
