◆ Suitable for small cooling tower up to 50 RT

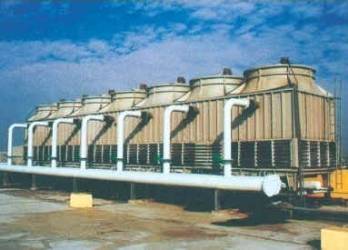

◆ Suitable for 200 - 2,000 RT cooling tower

◆ Suitable for industrial cooling tower

Benefits for using chemicals free cooling tower ozonator

With installation of ozone system, consequently, ozone can inhibit corrosion, scale, fouling and slime to increase efficiency and lifespan of the cooling tower. In addition, the use of ozone reduces the cost of water supply as well as environmental benefit and regulatory compliance with respect to discharge of wastewater from blow down.

Ozone as a preventative mechanism against corrosion

       ◆ Ozone prevents the growth of biopolymers on the surface of metal to inhibit corrosion.

       ◆ Ozone passivates the surface of metal to prevent corrosion.

       ◆ Eliminate the use of chlorine ion to prevent corrosion.

Ozone as a preventative mechanism against scale build up

     ◆ Positive ions such as Ca²⁺ and Mg²⁺ are precipitated by chelating carboxylic acids, which are formed by organic compound oxidation.

      ◆ Remove micro-organisms to prevent micro-organisms sticks into the surface of metal.

      ◆ Prevent build-up of scale associated with the micro-organisms and the inorganic material.

Legionnaire Disease Control

Ozone is much effective than Cl₂ and H₂O₂ on Legionnaire Disease Control so as to slime and fouling.

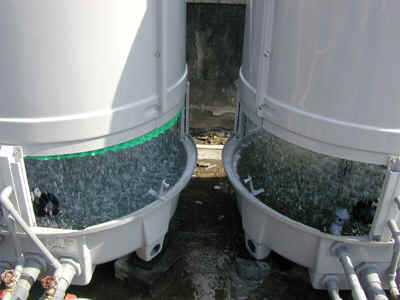

The comparison between untreated and treated for a period of 17 days.

AirTree Ozone Technology offers the cooling tower ozonator for different capacity of cooling tower form below 50 RT cooling tower to  industrial size upon requested.

Blue Ozone Box-7 (BOB-7) for 50 RT cooling tower

The BOB-7 is an ozonator that integrates ozone generation system, gas supply system, cooling system, and mixer system into a compact unit. It is designed to treat 50 RT cooling tower. The double quartz ozone generator tubes generate ozone continuously. It is a microprocessor controlled ozonator to be activated for a period of duty operation on the daily regular basis.

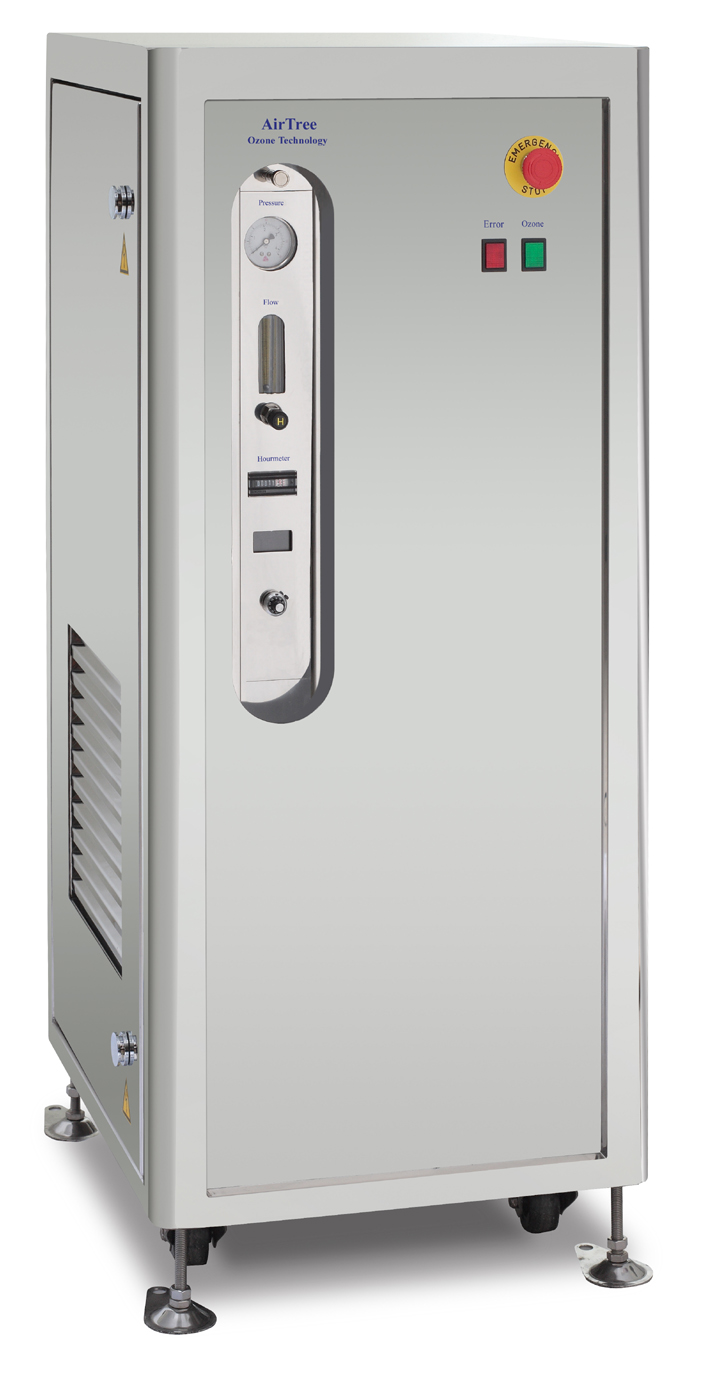

S-5 for 50-200 RT cooling tower

 The S-5 ozone generator designed to treat 50-200 RT cooling tower. The double quartz ozone generator tubes generate ozone continuously. It is a microprocessor controlled ozonator to be activated for a period of duty operation on the daily regular basis.

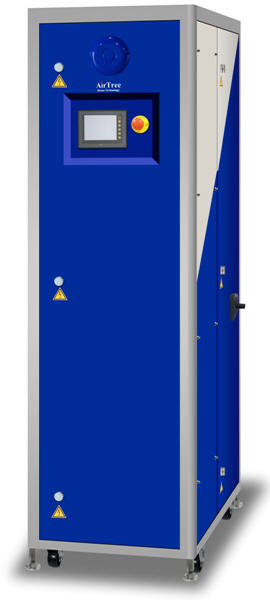

A-20/A-40 for 200-2,000 RT cooling tower

Each single unit of A-20 and A-40 is capable to treat 200-500 RT and 500-1,000 RT cooling tower, respectively. With special coating ozone generation tubes, A-20/A-40 can operate continuously at ultra high electricity cycle to provide high efficiency and stable ozone production with low energy consumption. Multiple units of A-20 or A-40 are utilized to treat the capacity of cooling tower from 1,000-2,000 RT.

* Refrigeration ton, RT

The refrigeration ton is based on the cooling effect of one ton of ice at 32 degree Fahrenheit melting  in 24 hours.

1 RT = 288,000 Btu/day = 12,000 Btu/h = 200 Btu/min

Generally, the water circulation rate, in a cooling tower, is calculated as

1 RT/4.53 kW = 13 LPM = 0.78 m³/h
