OWS-M
|
OWS-L
|
|
Buffer
Tank
|
Volume
|
0.2
m3
|
1.5
m3
|
|
Dimensions
|
Ø
50 x H170 (cm)
|
Ø
130 x H190 (cm)
|
|
Material
|
SUS304
or SUS316
|
|
Water
capacity
|
Up
to 20 m3/h (85 gal/min)
|
Up
to 40 m3/h (170 gal/min)
|
|
Max.
ozone concentration
|
Depend
on the ozone generator
|
|
Ozone
generator
|
G-P20
/ G-P30 / G-P40
|
G-P20
/ G-P30 / G-P40 / V-80
|
|
Oxygen
supply
|
Built-in
/
Built-in / Built-in
|
Built-in
/ Built-in / Built-in / MX-12
|
|

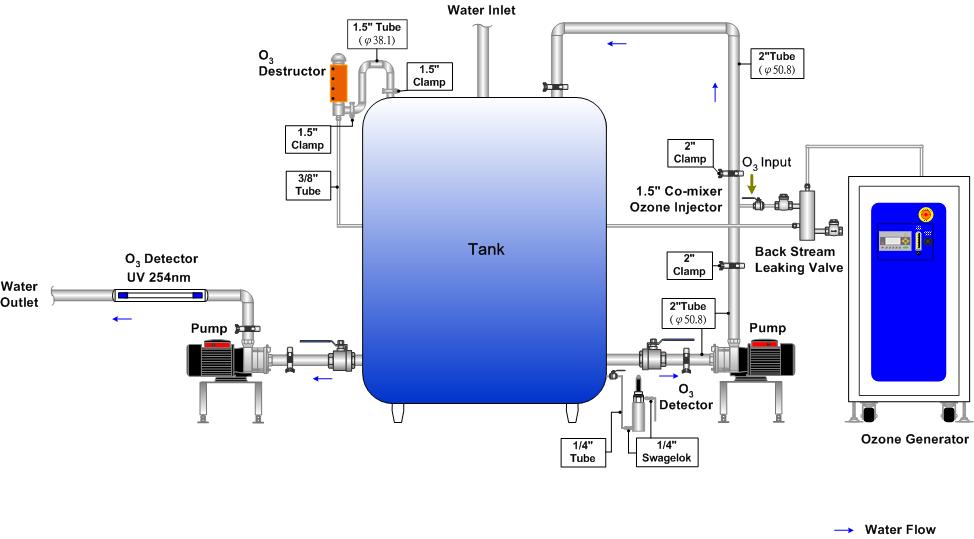

Ozone
injection
|
1.
CO-mixer
2.
Booster pump
3.
Back stream leaking valve
|
|
Dissolving
ozone sensor
|
Measurement
range: 0.02-2.00 ppm
|
|
Ambient
ozone sensor
|
Measurement
range: 0-0.3 ppm
|
|
Control
|
PLC
and HMI
|
|
Power
consumption
|
1.8
kW (ozone generator and oxygen supply are excluded)
|
|
Power
supply
|
AC
220-240 V, 50/60 Hz
|
|
Dimensions
|
L140
x W140 x H190 (cm)
|
L200
x W160 x H210 (cm)
|
