V series Ozone Generator | |
|
Air-cooled ozone generator with ozone production from 52 to 264 g/h at 8-10% by weight. |
||
|
V series Ozone Generator | |
|
Air-cooled ozone generator with ozone production from 52 to 264 g/h at 8-10% by weight. |
||
|
|
Applications ■ Waste water treatment ■ Aquaculture and aquarium ■ Swimming pool and SPA ■ Ozonated water for disinfection ■ Drinking water disinfection ■ Semiconductor application
Features ■ Unique coating on double-quartz ozone generation tubes ■ Low energy consumption ■ High efficiency and stable ozone production ■ HMI operation interface with keypad ■ Oxygen flow rate adjustable ■ Ozone output display ■ Ozone production adjustable ■ Remote control capability ■ Error signal display and alarm ■ CE certified Options ■ PC computer ■ RS-485 interface with software and RS485-RS232 converter ■ Ozone injection system ■ Ozone concentration analyzer ■ Ozone destructor ■ Back-stream leaking valve |
|
|
|

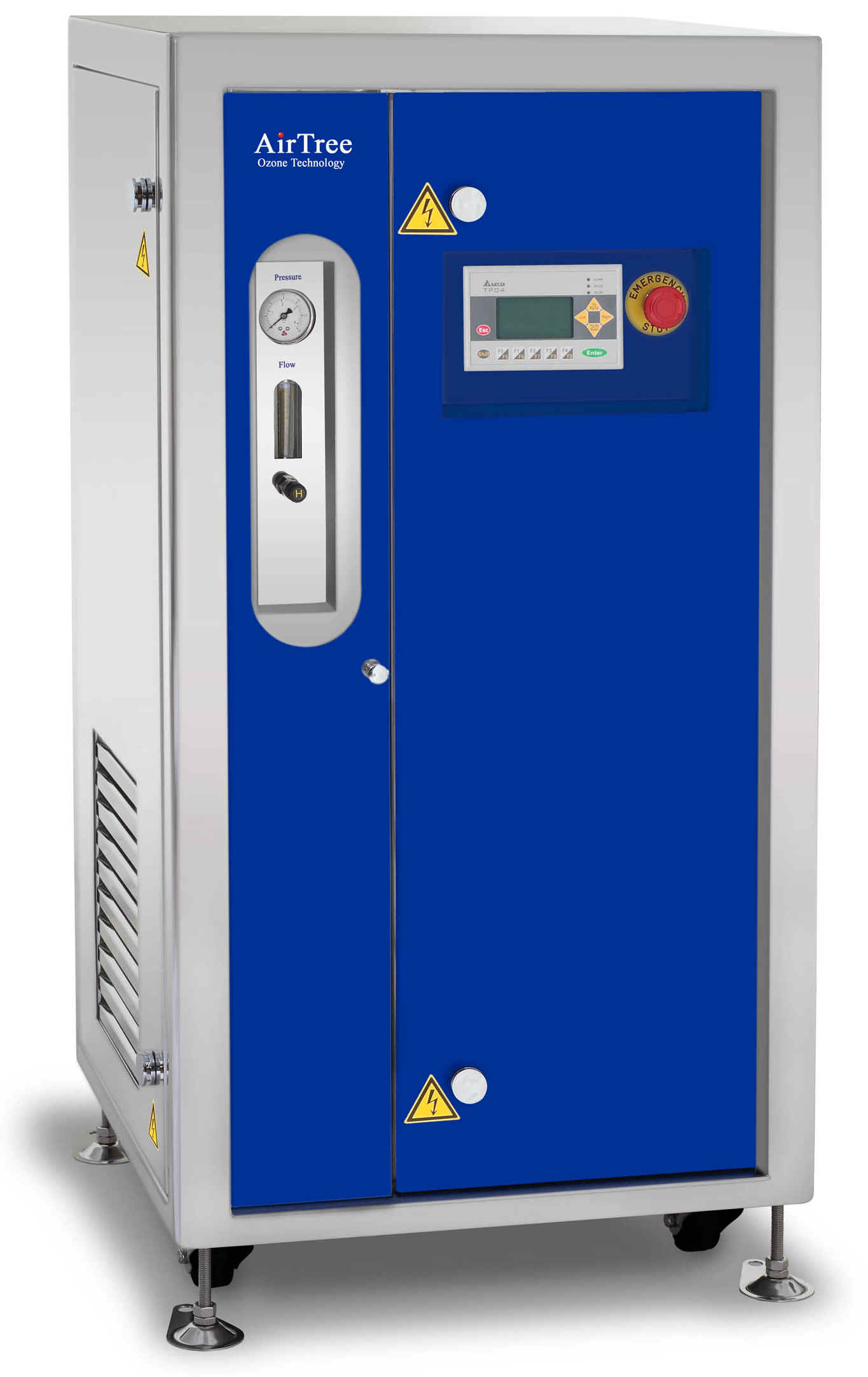

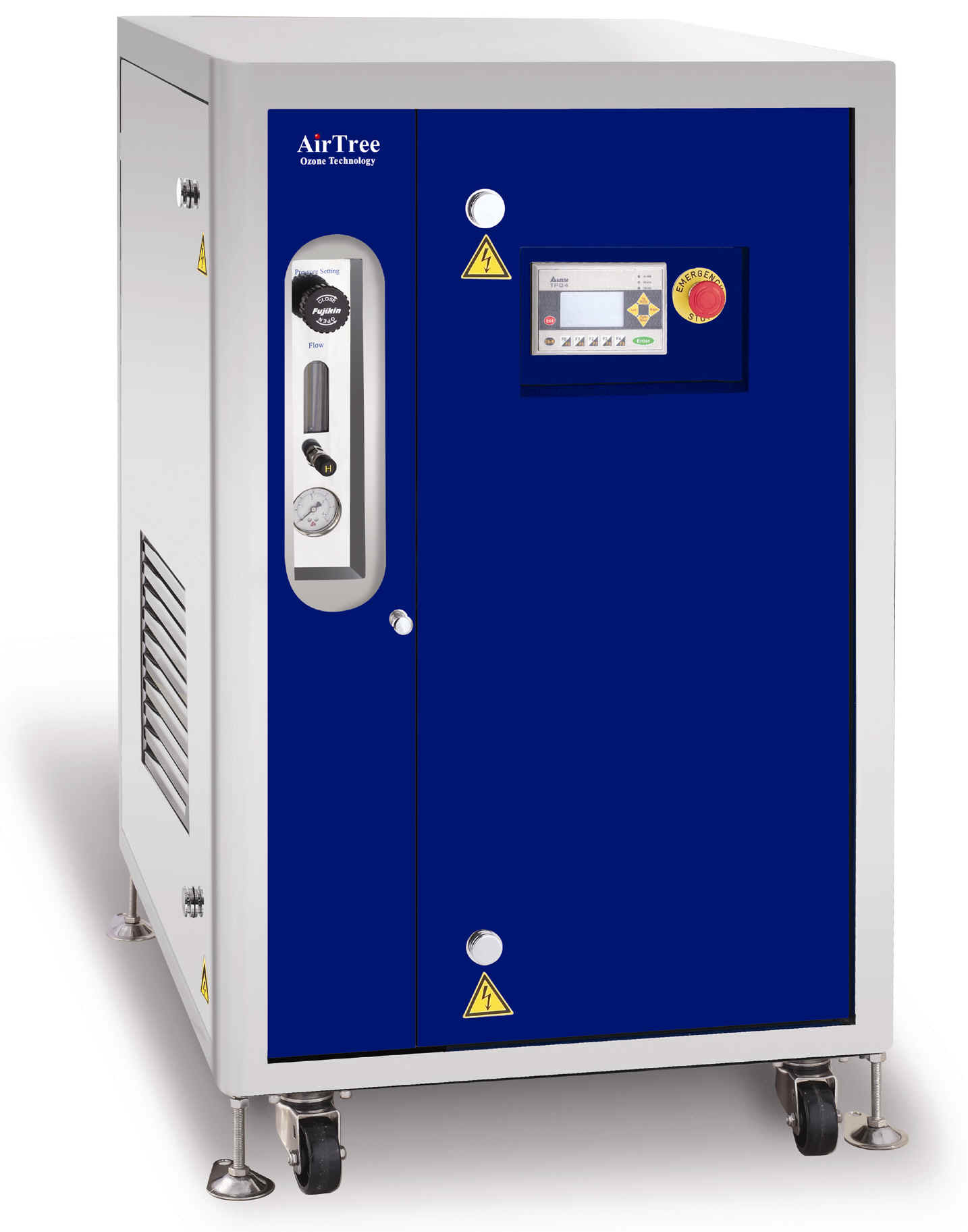

What is V series ozone generator?
V series ozone generator is an air-cooled, oxygen-fed ozone generator. Ozone is formed between the surfaces of quartz tubes so that no metallic oxidization contamination can occur. With our special design double quartz tubes, the ozone generator can be continuously operated for long periods at ultra-high electrical frequency, in order to provide high efficiency and stable ozone production with low energy consumption. V series has 5 models: V-80, V-120, V-160, V-200 and V-240, with ozone production from 52 to 264 g/h at 8-10% by weight, provides a large flexibility on ozone production and oxygen demand. The external feed gas can be either liquid oxygen or from an oxygen concentrator. AirTree PSA (Pressure Swing Adsorption) oxygen concentrator: MX series oxygen concentrator is the most convenient and efficient feed gas system for ozone generators. A Human Machine Interface (HMI) with Programmable Logical Controller (PLC) controls ozone output and displays ozone production. Furthermore, when coupled with an ozone sensor (option), this ozone generator can provide many flexible features such as ozone concentration controller for interfacing with PC computer (option) in various applications. |
V-80
