Model

G-Sapphire P series

G-P10

G-P20

G-P30

G-P40

  Dimension (mm)

L600 x W500 x H1200

L600 x W600 x H1200

L600 x W 600 x H 1200

L600 x W 600 x H 1200

  Weight (kg)

92

158

166

175

  Consumption

900 W

1000 W

1200 W

1500

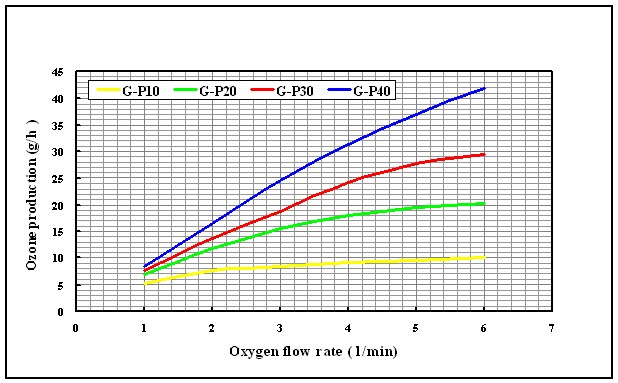

  Ozone production

10 g/h

oxygen-fed @ 2% by weight

20 g/h

oxygen-fed @ 4% by weight

30 g/h

oxygen-fed @ 6% by weight

40 g/h

oxygen-fed @ 8% by weight

  Feed gas

Built-in oxygen supply system

  Structure

Corona discharge between the surfaces of two quartz tubes without the presence of metals

  Flow rate

6 l/min

  Cooling method

Air-cooled

  Ozone outlet

6 mm Swagelok

  Signal interface

PLC multi-channels controller/display (G-P20, G-P30 and G-P40)

Both On/Off and ozone output intensity can be externally controlled by 4-20 mA signal

  Power supply

AC 220-240 V, 50/60 Hz, single phase
