On-line Ozone Water Treatment
　

　

　

　

　



　

　

　

　

　

I. On-line Ozonated Water Supply System

  II. S-5 Ozone Generation System

III. Blue Ozone Box-7 (BOB-7) System

　

　

I. On-line Ozonated Water Supply System

　

 Specification



On-line ozonated water supply system

S-10-NP

S-10-AM

S-10-GL

      Dimensions (mm)

W1300 x L400 x H1830

W1300 x L400 x H1830

W1300 x L400 x H1970

      Weight (kg)

160

230

230

      Feed Gas

Air

AM-20 air dryer

Dry air / Oxygen

      Power consumption (W)

2300

2900

2300

      Feed gas flow

24 l/min

      Feed gas pressure

1.5 bar-gauge

      Cooling method

Air-cooled

      Ozone outlet

M6

      Power supply

AC 220-240 V, 50/60 Hz, single phase

　

　
　

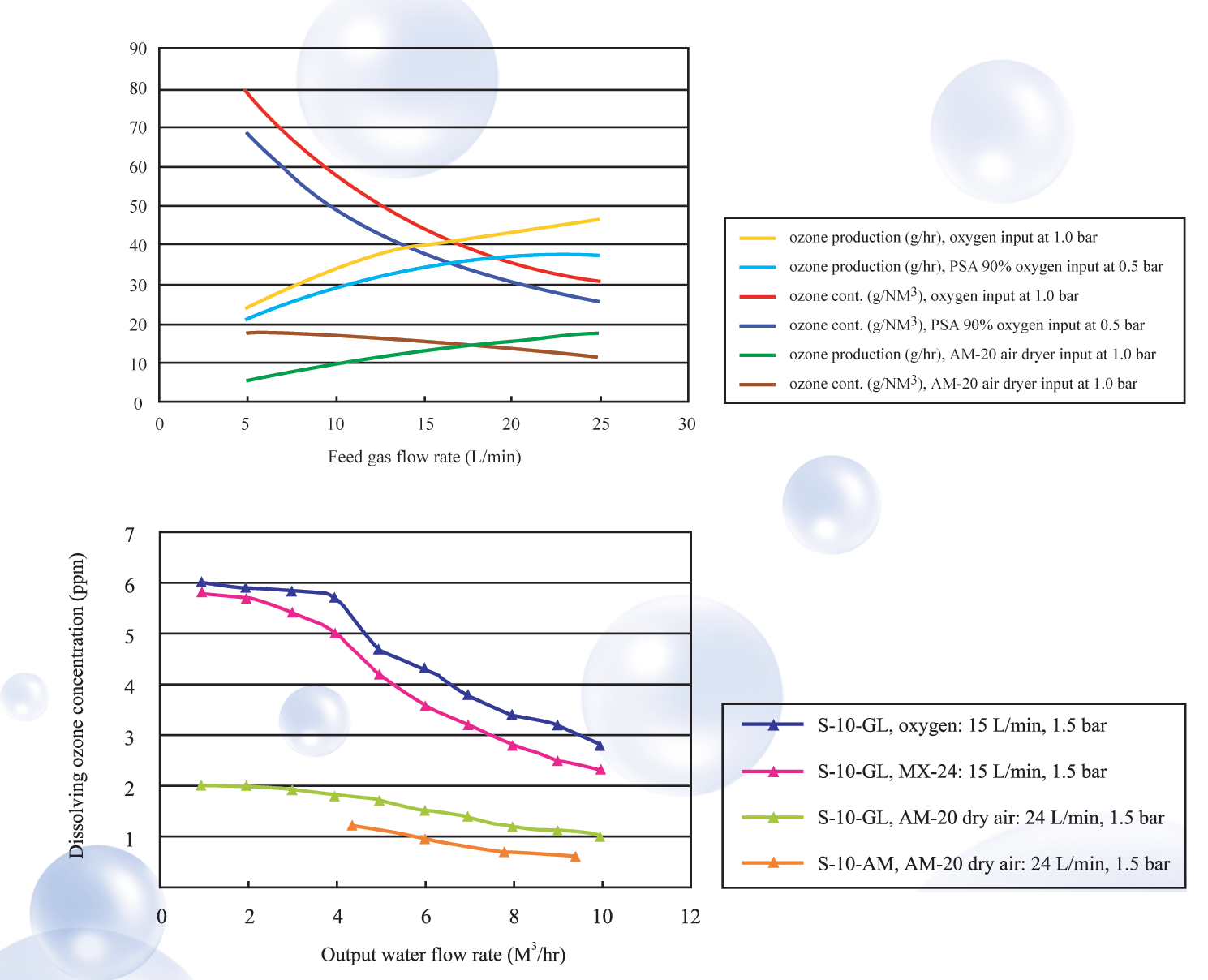

 S-10-GL and S-10-AM performance



　

　

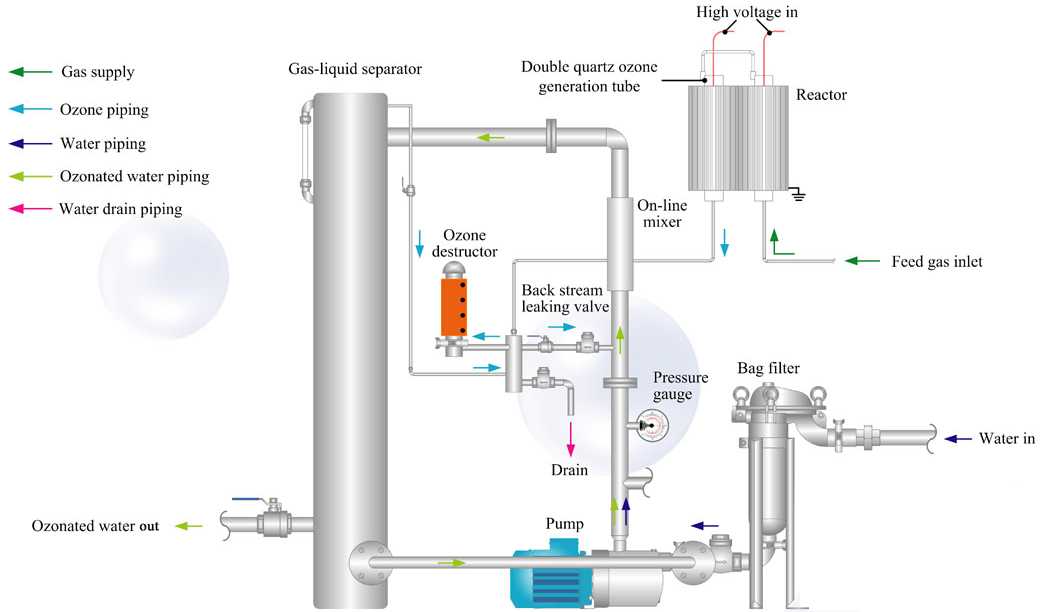

 Piping diagram

　

　

 System layout

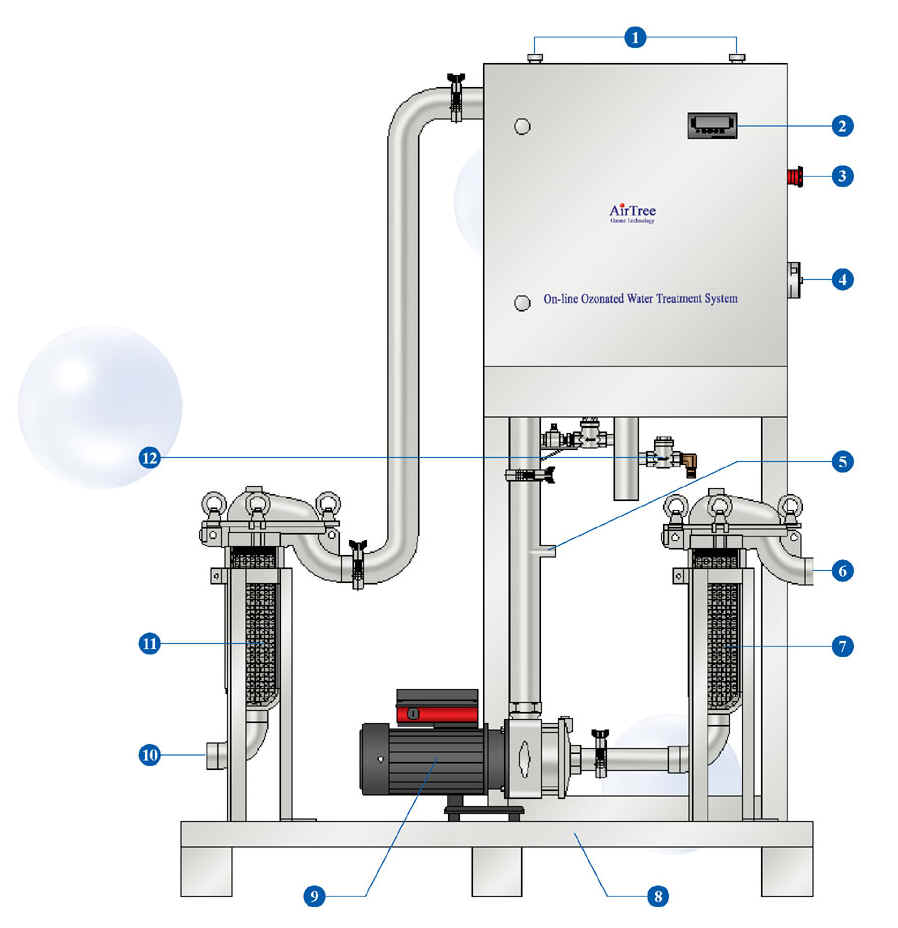

  ■ S-10-NP



1.

 Outfit screws

2.

 Ozone output display

3.

 Emergency stop button

4.

 On/Off switch

5.

 1/2” water inlet

6.

 Water inlet

7.

 Pre-treatment bag filter

8.

 Stainless skid

9.

 Pump

10.

 Water outlet

11.

 Post-treatment bag filter

12.

 Back stream protective valve

　

　

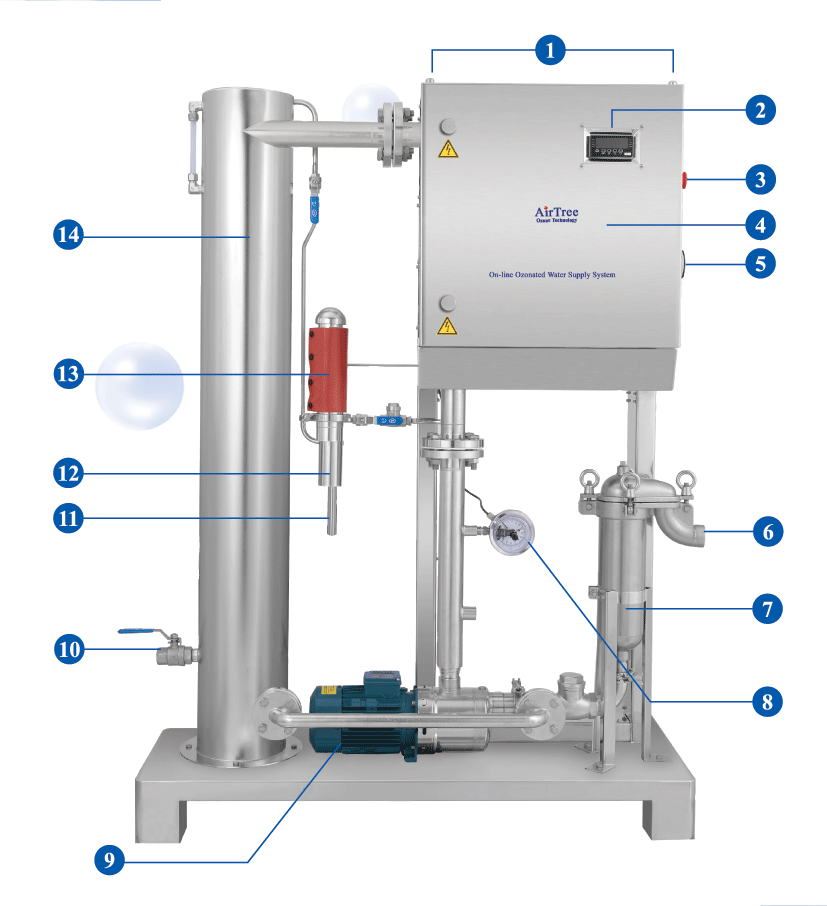

      ■ S-10-GL



1.

 Outfit screws

2.

 Ozone output display

3.

 EMS button

4.

 S-10 ozone generator

5.

 On/Off switch

6.

 Water inlet

7.

 Bag filter

8.

 Pressure gauge

9.

 Pump

10.

 Water outlet

11.

 Pre-treatment bag filter

12.

 Back stream protective valve

13.

 Ozone destructor

14.

 Gas liquid separator

　

　



II. S-5 Ozone Generation System

　

 Specification



S-5 Ozone Generation System

         Dimensions (mm)

W1100 x L500 x H1200

         Weight (kg)

110

         Feed gas

    Air / under negative pressure suction

         Power consumption

    230 W (pump excluded)

         Cooling method

Internal

         Power supply

AC 220-240 V, 50/60 Hz, single phase

　

　

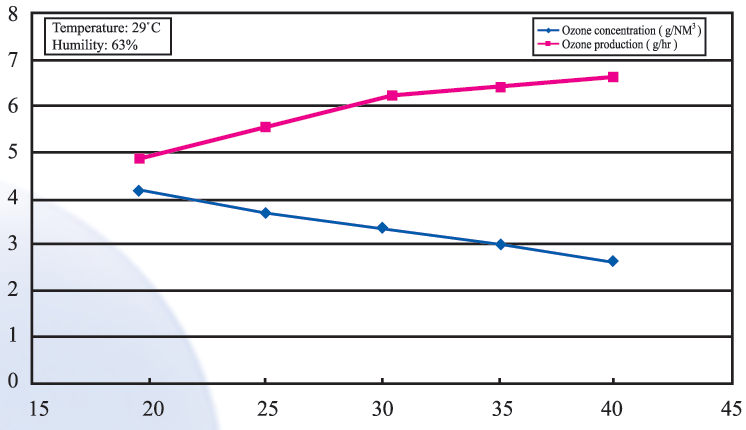

 Performance



                                                            Air flow rate (l/min)

                                                   Note: under negative pressure sucking rate configuration.

　

　

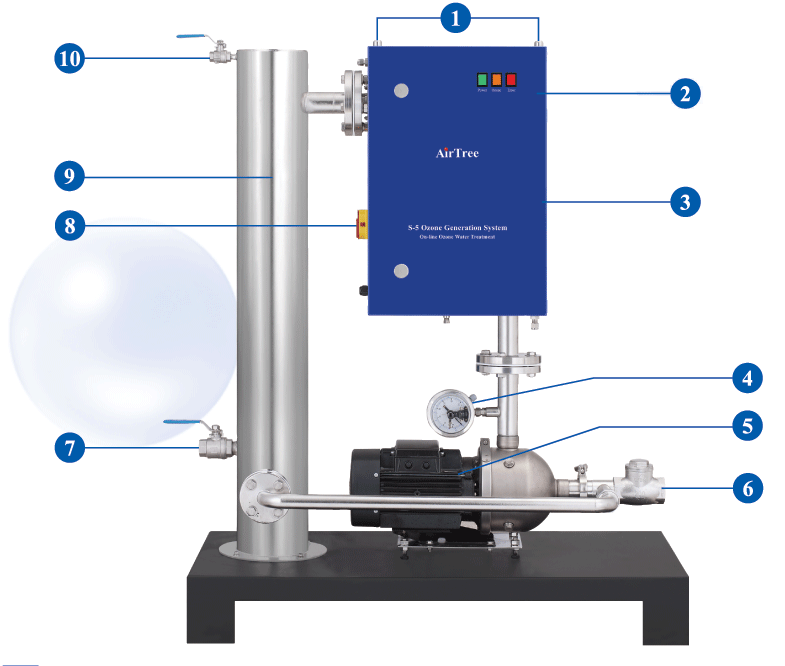

 System layout



　

1.

 Outfit screws

2.

 Indicators

3.

 S-5 ozone generator

4.

 Pressure gauge

5.

 Pump

6.

 Water inlet

7.

 Water outlet

8.

 EMS button

9.

 Gas-liquid separator

10.

 De-gas outlet

　

　



III. Blue Ozone Box-7 (BOB-7) System

　

 Specification



S-5 Ozone Generation System

         Dimensions (mm)

W1080 x L500 x H1000

         Weight (kg)

93

         Feed gas

    Air / under negative pressure suction

         Power consumption

    90 W (pump excluded)

         Cooling method

Internal

         Power supply

AC 220-240 V, 50/60 Hz, single phase

　

　

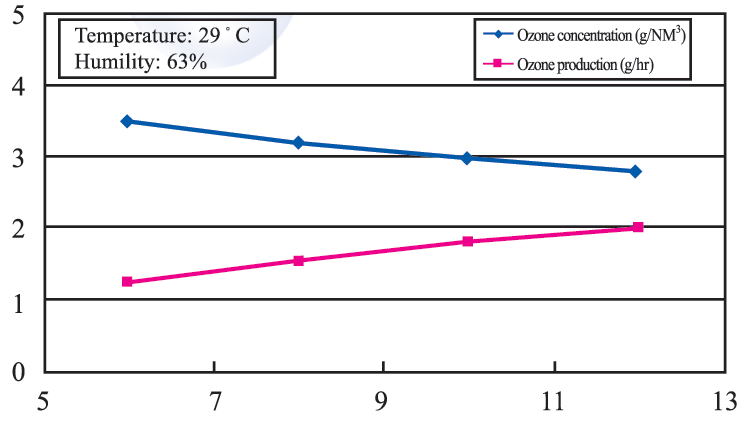

 Performance



                                                                                      Air flow rate (l/min)

                                                   Note: under negative pressure sucking rate configuration.

　

　

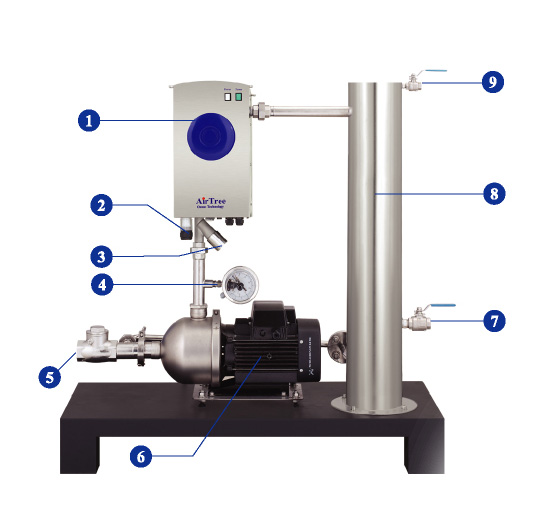

 System layout



　

1.

 BOB-7 ozone generator

2.

 Air filter

3.

 Y-strainer

4.

 Pressure gauge

5.

 Water inlet

6.

 Pump

7.

 Water outlet

8.

 Gas-liquid separator

9.

 De-gas outlet



　

　

　

　
