Specification
|
|
H-200 |
H-400 |
H-600 |
H-800 |
H-1000 |
H-1200 |
|
Structure |
Silent discharge upon the surfaces of two quartz tubes |
|||||
|
Dimensions (mm) |
600 x 850 x 1900 |
600 x 1000 x 1900 |
1000 x 1750 x 2045 |
1000 x 1750 x 2045 |
1100 x 2000 x 2100 |
1100 x 2000 x 2100 |
|
Weight (kg) |
550 |
640 |
1200 |
1400 |
1610 |
1820 |
|
Feed gas |
Oxygen (99.99%) |
Oxygen (99.99%) |
Oxygen (99.99%) |
Oxygen (99.99%) |
Oxygen (99.99%) |
Oxygen (99.99%) |
|
Cooling method |
Water cooled |
Water cooled |
Water cooled |
Water cooled |
Water cooled |
Water cooled |
|
Ozone production (cooling water: 5℃) |
200 g/h@250 g/Nm3, 14 l/min |
300 g/h@250 g/Nm3, 21 l/min |
120 g/h@360 g/Nm3, 6 l/min 270 g/h@330 g/Nm3, 15 l/min |
160 g/h@360 g/Nm3, 8 l/min 360 g/h@330 g/Nm3, 20 l/min |
200 g/h@360 g/Nm3, 10 /min 450 g/h@330 g/Nm3, 25 l/min |
240 g/h@360 g/Nm3, 12 l/min 540 g/h@330 g/Nm3, 30 l/min |
|
Ozone production (cooling water: 18℃) |
120 g/h@250g/Nm3, 8.5 l/min |
180 g/h@250 g/Nm3, 13 l/min |
105 g/h@315 g/Nm3, 6 l/min 240 g/h@290 g/Nm3, 15 l/min |
140 g/h@315 g/Nm3, 8 l/min 320 g/h@290 g/Nm3, 20 l/min |
175 g/h@315 g/Nm3, 10 /min 400 g/h@290 g/Nm3, 25 l/min |
210 g/h@315 g/Nm3, 12 l/min 480 g/h@290 g/Nm3, 30 l/min |
|
Power consumption (kW) |
5 |
7 |
10.5 |
14 |
17.5 |
21 |
|
Power supply |
220-240 V~, 50/60 Hz |
|||||
|
Interface |
PLC and POD |
|||||
|
Certified |
CE and SEMI S2/S8 |
|||||
|
Ambient conditions |
a. Ambient temperature: 5℃ - 40℃ (recommend: 25℃) b. Humidity: Max 80% (Not exceed 50% at 40℃) |
|||||

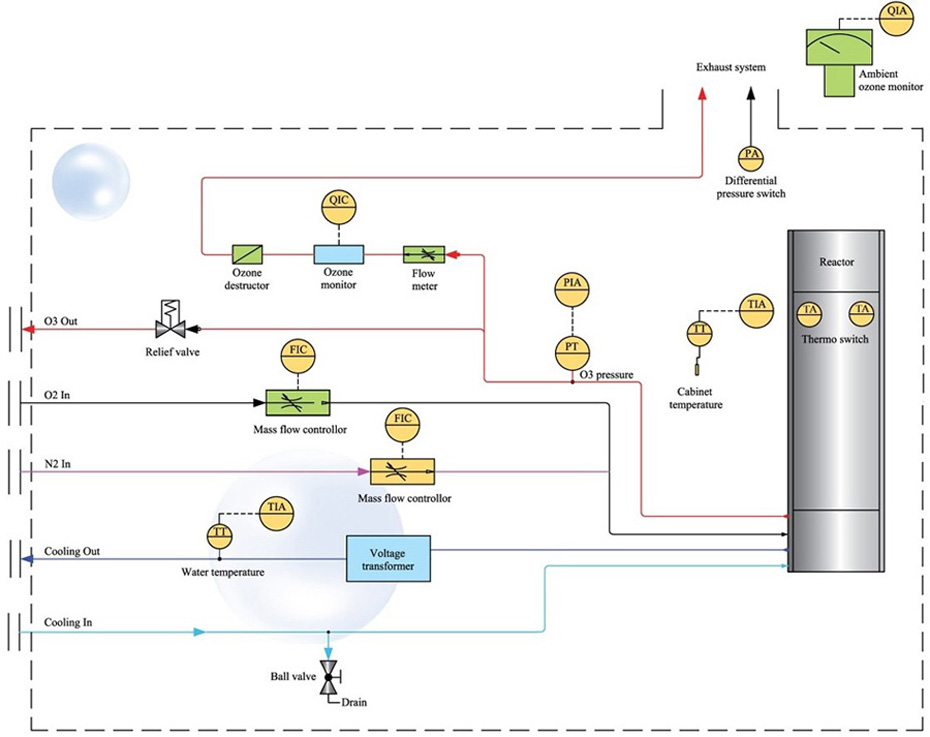

PI Diagram
|
|

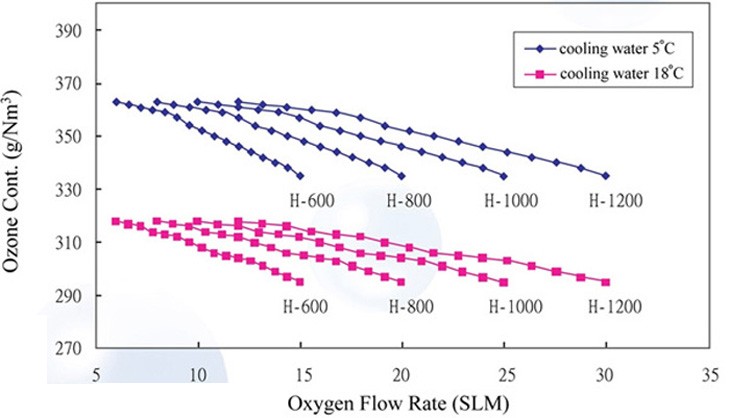

Performance
|

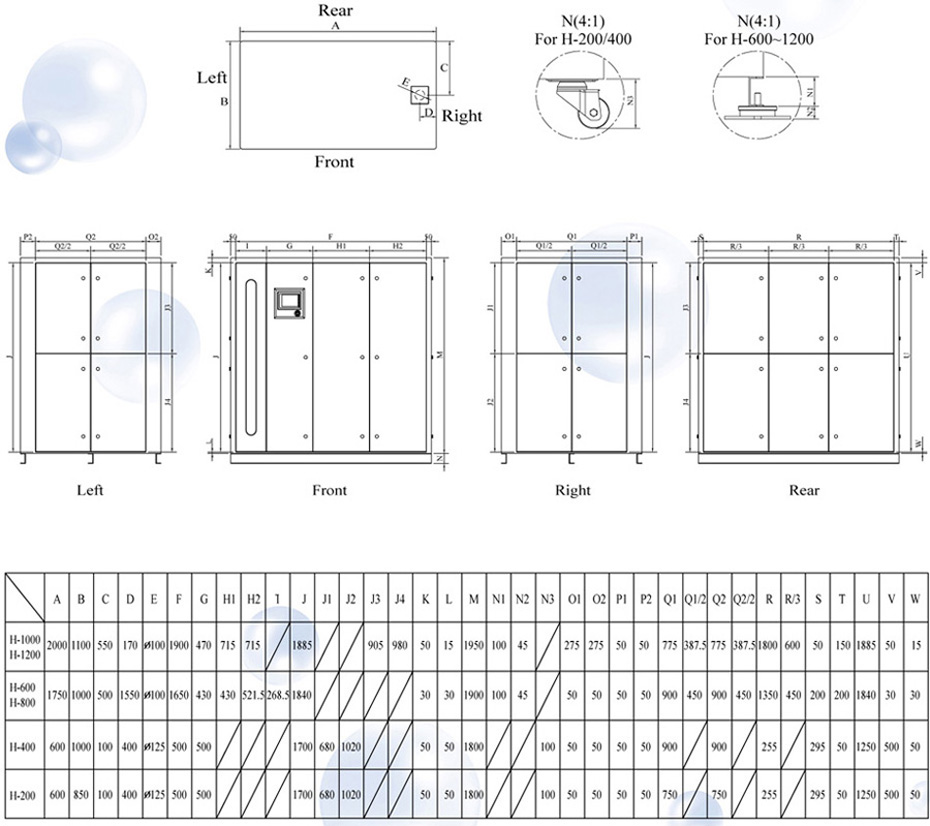

Dimensional Drawing
 |
