G-Sapphire T series: G-T2

  Dimension (mm)

600 x 900 x 1200

  Weight (kg)

240

  Ozone production

138 g/h @ 10% wt

177 g/h @ 9% wt

219 g/h @ 8% wt

253 g/h @ 7% wt

299 g/h @ 6% wt

  Flow rate (l/min)

6

  Structure

Corona discharge between the surfaces of two quartz tubes without the presence of metals

  Fed gas

Oxygen

  Signal interface

PLC multi-channels controller/display

Both On/Off and ozone output intensity can be externally controlled by 4-20 mA signal

  Cooling method

Water-cooled

  Ozone output

10 mm Swagelok

  Power supply

AC 220-240 V, 50-60 Hz, single phase

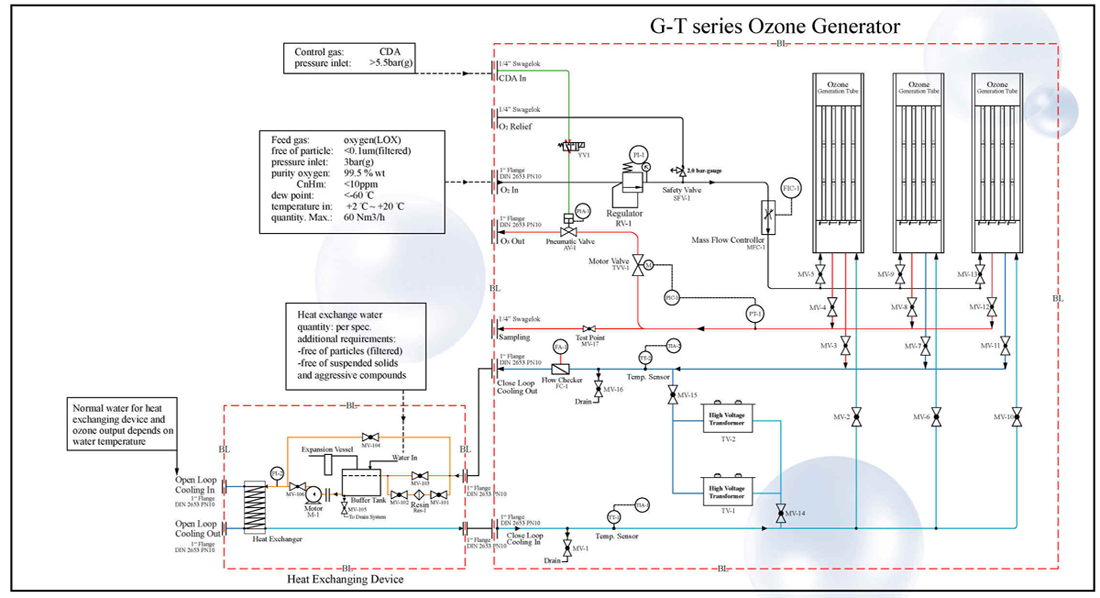

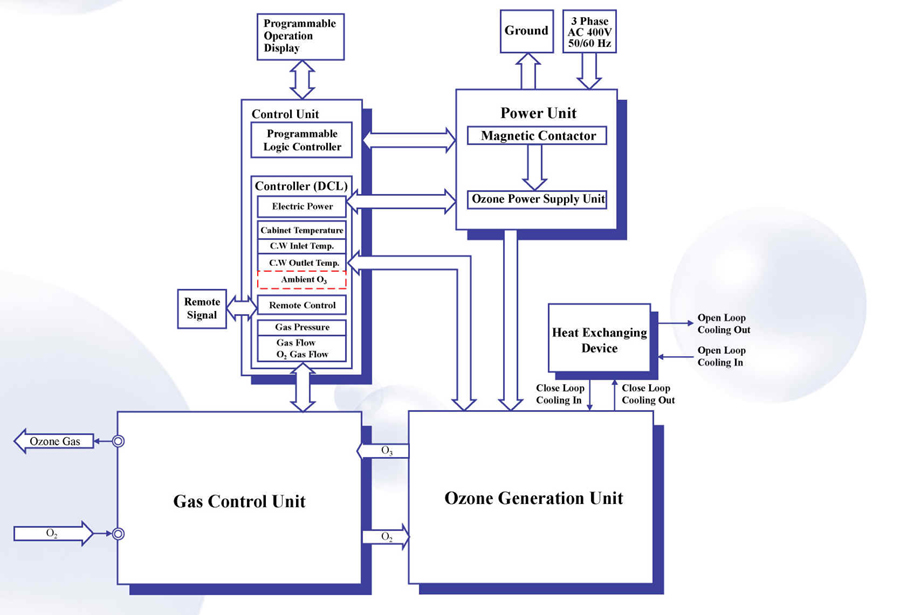

G-Sapphire T series

G-T4

G-T6

G-T8

G-T10

G-T12

     Dimension (mm)

W600 x L1000 x H2015

W600 x L1000 x H2015

W1200 x L1000 x H2044

W1200 x L1000 x H2044

W1200 x L1000 x H2044

     Weight (kg)

370

430

640

740

780

     Ozone production

275 g/h @ 10% wt

400 g/h @ 10% wt

550 g/h @ 10% wt

670 g/h @ 10% wt

800 g/h @ 10% wt

335 g/h @ 9% wt

475 g/h @ 9% wt

670 g/h @ 9% wt

810 g/h @ 9% wt

950 g/h @ 9% wt

415 g/h @ 8% wt

580 g/h @ 8% wt

830 g/h @ 8% wt

1000 g/h @ 8% wt

1170 g/h @ 8% wt

490 g/h @ 7% wt

725 g/h @ 7% wt

980 g/h @ 7% wt

1210 g/h @ 7% wt

1450 g/h @ 7% wt

570 g/h @ 6% wt

850 g/h @ 6% wt

1140 g/h @ 6% wt

1425 g/h @ 6% wt

1710 g/h @ 6% wt

     Cooling water

     flow rate (l/min)

10

15

20

25

30

     Inlet/Outlet

Water: DIN 20 (3/4" Flange/3/4" Flange)

O2/O3: 12 mm /12 mm or 1/2" Swagelok/ 1/2" Swagelok

            Water: DIN 25 (1" Flange/1" Flange),  O2/O3: DIN20 (3/4" Flange/3/4" Flange)

     Structure

Corona discharge between the surfaces of two quartz tubes without the presence of metals

     Feed gas

Oxygen

     Cooling method

Water-cooled, Water temperature 15℃

     Signal interface

HMI/PLC multi-channels controller/display

Both On/Off and ozone output intensity can be externally controlled by 4-20 mA signal

     Power supply

AC 400 V, 50/60 Hz, 3 phase

G-Sapphire T series

G-T14

G-T16

G-T18

G-T24

G-T30

G-T36

     Dimension (mm)

W1200 x L1000 x H2044

W1200 x L1000 x H2044

W1200 x L1000 x H2044

W1400 x L1500 x H2145

W1400 x L1500 x H2145

W1400 x L1500 x H2145

     Weight (kg)

930

970

1080

1550

1600

1650

    Ozone production

950 g/h @ 10% wt

1000 g/h @ 10% wt

1200 g/h @ 10% wt

1600 g/h @ 10% wt

2000 g/h @ 10% wt

2500 g/h @ 10% wt

1150 g/h @ 9% wt

1280 g/h @ 9% wt

1430 g/h @ 9% wt

1900 g/h @ 9% wt

2350 g/h @ 9% wt

2850 g/h @ 9% wt

1420 g/h @ 8% wt

1590 g/h @ 8% wt

1750 g/h @ 8% wt

2250 g/h @ 8% wt

2800 g/h @ 8% wt

3300 g/h @ 8% wt

1700 g/h @ 7% wt

1930 g/h @ 7% wt

2170 g/h @ 7% wt

2800 g/h @ 7% wt

3500 g/h @ 7% wt

4200 g/h @ 7% wt

2000 g/h @ 6% wt

2280 g/h @ 6% wt

2560 g/h @ 6% wt

3360 g/h @ 6% wt

4200 g/h @ 6% wt

5000 g/h @ 6% wt

     Cooling water

     flow rate (l/min)

35

40

45

60

75

90

     Inlet/Outlet

Water: DIN 25 (1" Flange/1" Flange), O2/O3: DIN20 (3/4" Flange/3/4" Flange)

    Water: DIN 25 (1" Flange/1" Flange), O2/O3: DIN20 (3/4" Flange/3/4" Flange)

     Structure

Corona discharge between the surfaces of two quartz tubes without the presence of metals

     Feed gas

Oxygen

     Cooling method

Water-cooled, Water temperature 15℃

     Signal interface

HMI/PLC multi-channels controller/display

Both On/Off and ozone output intensity can be externally controlled by 4-20 mA signal

     Power supply

AC 400 V, 50/60 Hz, 3 phase
