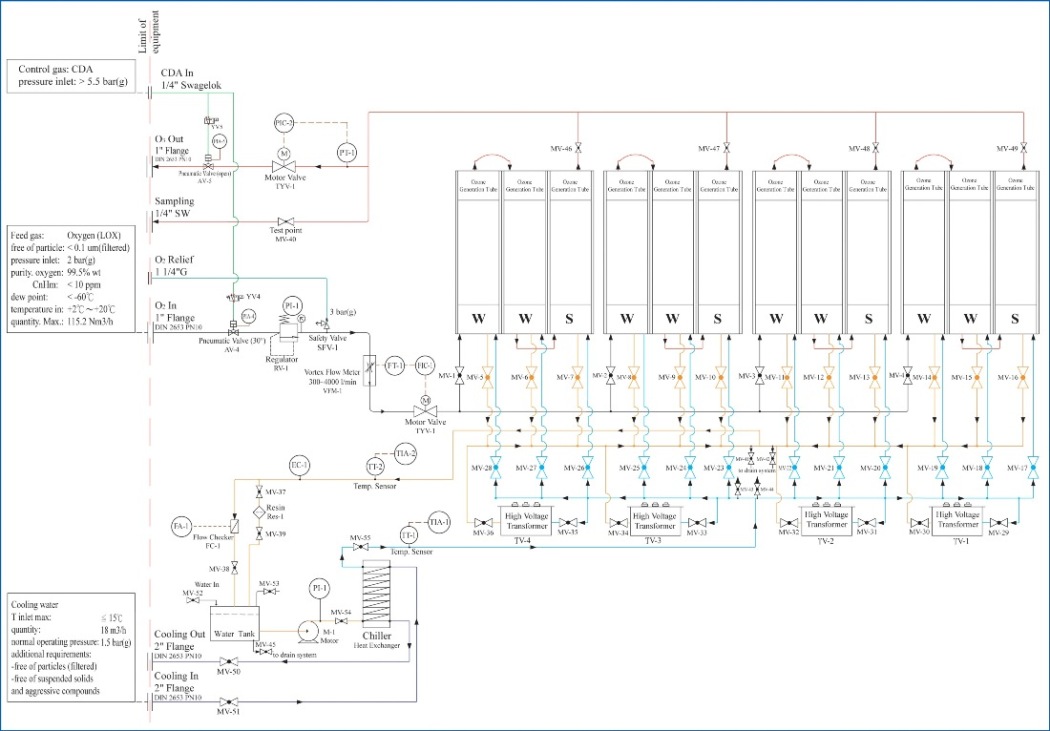

D-Matrix TW series

TW-025

TW-050

TW-100

  Dimension (mm)

1400x 1500 x 2100

2040x 2200 x 2176

2800 x 2200 x 2176

  Weight (kg)

2000

3000

7000

  Ozone production

2.1 kg/h @ 12 % by weight, 178.7 g/Nm³

2.3 kg/h @ 11 % by weight, 163.2 g/Nm³

2.5 kg/h @ 10 % by weight, 147.8 g/Nm³

2.7 kg/h @ 9 % by weight, 132.6 g/Nm³

3.2 kg/h @ 8 % by weight, 117.5 g/Nm³

3.6 kg/h @ 7 % by weight, 103.0 g/Nm³

4.0 kg/h @ 6 % by weight, 88.0 g/Nm³

4.2 kg/h @ 12 % by weight, 178.7 g/Nm³

4.6 kg/h @ 11 % by weight, 163.2 g/Nm³

5.0 kg/h @ 10 % by weight, 147.8 g/Nm³

5.4 kg/h @ 9 % by weight, 132.6 g/Nm³

6.4 kg/h @ 8 % by weight, 117.5 g/Nm³

7.2 kg/h @ 7 % by weight, 103.0 g/Nm³

8.0 kg/h @ 6 % by weight, 88.0 g/Nm³

8.4 kg/h @ 12 % by weight, 178.7 g/Nm³

9.2 kg/h @ 11 % by weight, 163.2 g/Nm³

10.0 kg/h @ 10 % by weight, 147.8 g/Nm³

10.8 kg/h @ 9 % by weight, 132.6 g/Nm³

12.8 kg/h @ 8 % by weight, 117.5 g/Nm³

14.45 kg/h @ 7 % by weight, 103.0 g/Nm³

16.0 kg/h @ 6 % by weight, 88.0 g/Nm³

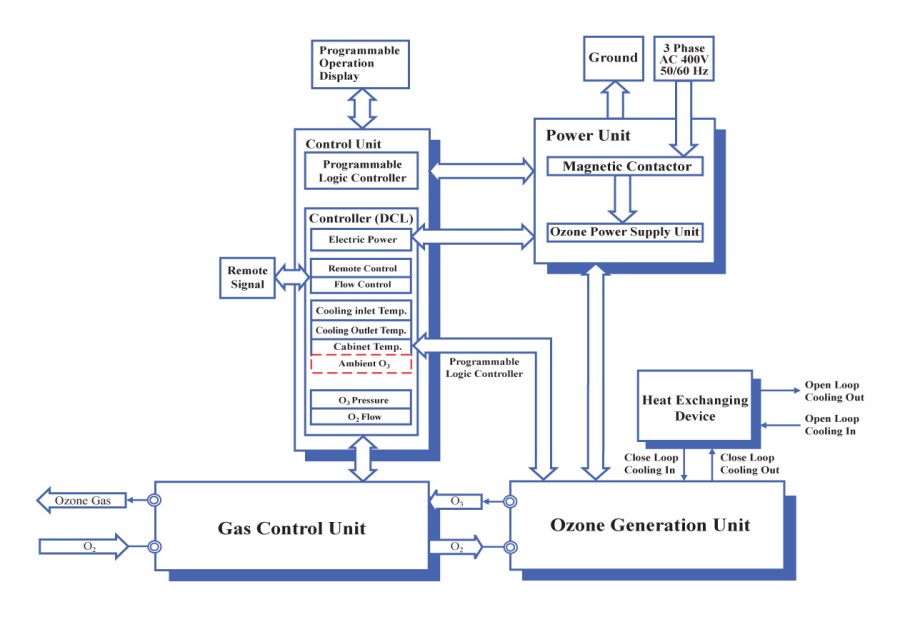

  Signal interface

HMI/PLC multi-channels controller/display

Both On/Off and ozone output intensity can be externally controlled

  Structure

Corona discharge between the surfaces of two quartz tubes without the presence of metals

  Feed gas

Liquid oxygen

  Ozone output pressure

1.0 bar-gauge

  Cooling method

Water-cooled

  Power supply

AC 400 V, 50/60 Hz, 3 phase
