Specification:

　


AIO series

AIO-4

AIO-10

  Dimensions (mm)

600 x 250 x 600

500 x 250 x 750

  Weight (kg)

40

50

  Consumption (W)

360

720

  Gas flow (l/min)

15

25

  Ozone production

4.5 g/h @ 15 l/min

10 g/h @ 25 l/min

  Structure

Corona discharge between the surface of two quartz tubes without the presence of metals

  Feed gas

Air (built-in air pump)

  Cooling method

Air-cooled

  Ozone outlet

1/4" Swagelok

  Operation pressure

1.0 bar-gauge

  Control method

On/Off switch

  Power supply

AC 220-240 V, 50/60 Hz, single phase

　

　

　

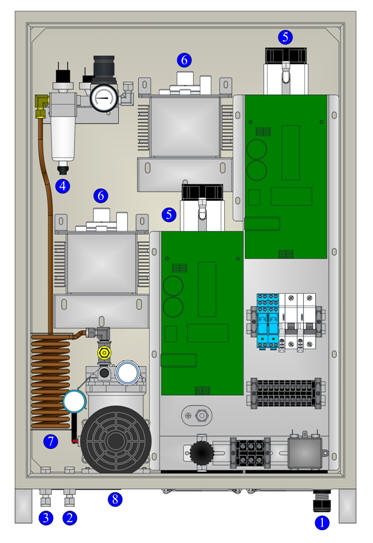

Structure:

　

 　
            　

　

　

　

　

　

1. Power line connector

2. Ozone outlet

3. Drain

4. Filter

5. Ozone generation tube

6. High voltage transformer

7. Condenser

8. Air pump

　

　

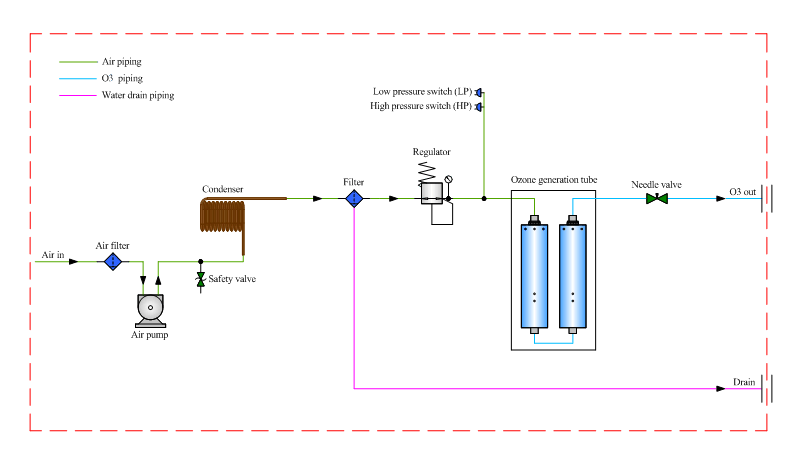

PID:



　

　

　

　
